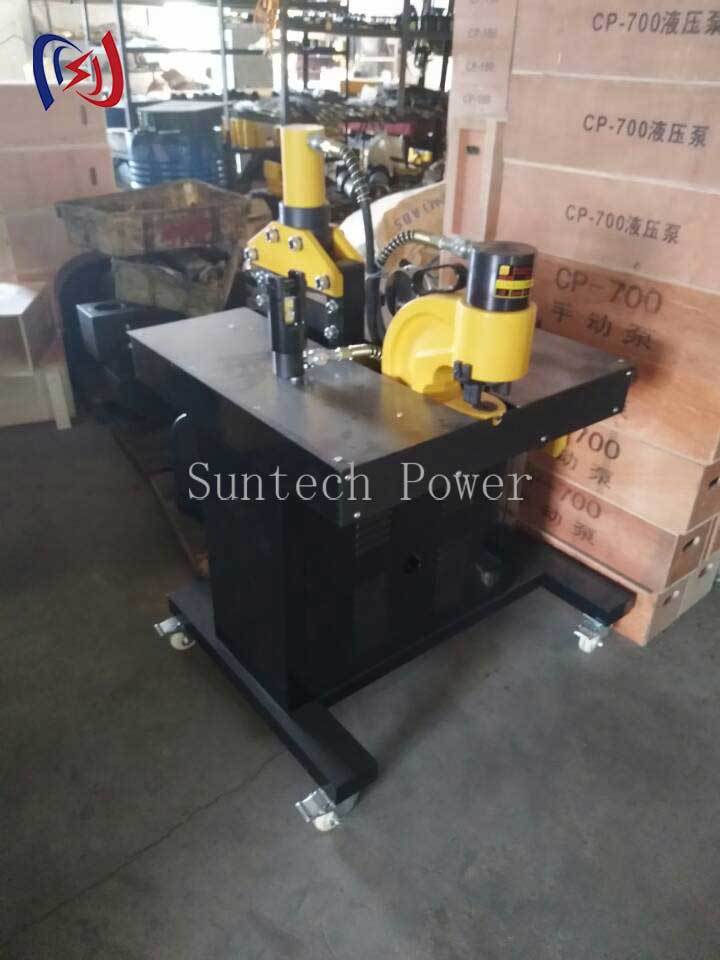

Professional Hydraulic Bus-bar Machine - 0-12mm Thickness Capacity with ±0.1mm Precision​

Brand Name : Suntech

Model Number : EPCB-301

Certification : ISO

Place of Origin : Ningbo

MOQ : 1 PCS

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 500 PCS/Month

Delivery Time : 7-15days

Packaging Details : Plywood Case

Name : Hydraulic Bus-bar Machine

Item No. : 06232/06231

Model : EPCB-301

Dimension of work table : 690x60x730mm

Voltage single phase : 220V50HZ

Rating oil pressure : 700kg/cm2

Bending force : 170/200/270KN

Bending range : 150x10mm max/200x12.5mm max

Cutting force : 200/300KN

Cutting range : 150x10mm max/200x12mm max

Punching force : 300-350KN

Distance from hole to sheet side : 95x110mm

Contact Now

Professional Hydraulic Bus-bar Machine - 0-12mm Thickness Capacity with ±0.1mm Precision


The ​​Hydraulic Bus-bar Machine​​ is a ​​state-of-the-art industrial tool​​ designed for ​​precision processing of copper and aluminum bus-bars​​ in electrical panel manufacturing, substations, and power distribution systems. With a ​​20-ton hydraulic system​​, it performs ​​flawless punching, bending, and cutting​​ operations on bus-bars with thicknesses ranging from ​​0.5mm to 12mm​​. Unlike traditional manual tools, this machine ​​eliminates material waste​​ and improves production efficiency by ​​80%​​.


​​Key Features:​​
✔ ​​Triple-Function Design​​ - Integrates ​​punching, bending, and cutting​​ in one compact unit
✔ ​​Precision Engineering​​ - Achieves ​​±0.1mm tolerance​​ for critical electrical applications
✔ ​​Interchangeable Dies​​ - 12 standard dies included for various shapes and sizes
✔ ​​Safety First​​ - Dual-hand operation with emergency stop for accident prevention
✔ ​​Energy Efficient​​ - 20% lower hydraulic oil consumption than competitors


​​Performance Benefits:​​

  • ​​Processes 12mm copper bus-bar in 5 seconds​​ - 5X faster than manual methods
  • ​​Zero material deformation​​ - Maintains perfect conductivity after processing
  • ​​50,000+ operations​​ before first maintenance required


​​Technical Specifications:​​

  • ​​Model:​​ EPCB-301
  • ​​Max Working Width:​​ 30mm
  • ​​Hydraulic Pressure:​​ 27 tons
  • ​​Die Material:​​ Tungsten carbide (HRC 68)
  • ​​Power Supply:​​ 220V
  • ​​Compliance:​​ ISO 9001, IEC 61439
  • ​​Warranty: 1 years


​​Ideal Applications:​​

  • Electrical panel manufacturing
  • Power substation maintenance
  • Renewable energy systems
  • Industrial control cabinets
Item No. 06232 06231
Model EPCB-301 EPCB-401
Function with three functions,cutting,punching and bending with four functions,cutting,punching and bending(horizontal and erective)
Dimension of work table approx.690*690*730mm approx.690*690*730mm
Voltage single phase 220V50HZ 220V50HZ
Rating oil pressure 700kg/cm2 700kg/cm2
Bending force 170kn/200kn 270kn
Bending range 150*10mm max/200*12mm max 125*12.5mm max
Cutting force 200kn/300kn 200kn/300kn
Cutting range 150*10mm max/200*12mm max 150*10mm max/200*12mm max
Punching force 300kn/350kn 300kn/350kn
Distance from hole to sheet side 95*110mm max 95*110mm
Punch range

Φ10.5mmΦ13.8mm

Φ17mmΦ20.5mm

3/8"(Φ10.5mm),1/2"(Φ13.8mm)

5/8"(Φ17mm),3/4"(Φ20.5mm)
Package wooden case wooden case
