Industrial-Grade Manual Hydraulic Pump for Power Construction Tools
Key Features:
✔ Manual/Electric Options – Choose between hand-operated or battery-powered models
✔ Built-In Pressure Gauge – Monitors and controls hydraulic pressure in real time
✔ Quick-Release Valve – Allows fast reset and tool repositioning
✔ Large Oil Reservoir – Reduces refill frequency during extended operations
✔ Durable Construction – Hardened steel body with anti-corrosion coating
✔ Safety Features – Overpressure relief valve and ergonomic non-slip handles
Technical Specifications:
Oil Capacity: 200-500ml (depending on model)
Connector Type: Standard quick-connect couplers
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Working Principle:
The pump uses manual lever action (or electric motor) to pressurize hydraulic oil, which is then delivered through high-pressure hoses to connected tools (crimpers, cutters, etc.). The pressure relief valve ensures safe operation by preventing system overload.
Primary Applications:
✅ Power cable crimping and cutting
✅ Substation maintenance and construction
✅ Industrial hydraulic tool systems
✅ Telecom and railway electrification projects
✅ Mining and offshore power installations
Advantages:
⚡ Consistent Performance – Maintains steady pressure for precision work
⚡ Versatile Compatibility – Works with most standard hydraulic tools
⚡ Low Maintenance – Sealed system with minimal wear parts
⚡ Portable – Compact design for easy transport to job sites
Service & Support:
1-Year Warranty
Global Technical Support
| Item number | 16164C | 16164 | 16164A | 16164B |
| Model | CP-180 | CP-700 | CP-700A | CFP-800B |
| Type | hand | hand | hand | foot pump |
| Max output pressure | / | low pressure 2Mpa | low pressure 2Mpa | low pressure 2Mpa |
| high pressure 70MPa | high pressure 70Mpa | high pressure 70Mpa | high pressure 70Mpa |
| Output of the oil | / | low pressure 13cc | low pressure 13cc | low pressure 13cc |
| high pressure 1.8cc | high pressure 2.3cc | high pressure 2.3cc | high pressure 2.3cc |
| Oil capacity | 350cc | 900cc | 2700cc | 600cc |
| Direction of piston | single | double | double | double |
| Weight(KG) | approx.N.W9.5KG G.W10.9KG | approx.N.W9.5KG G.W10.9KG | approx.N.W14.1KG G.W15.5KG | approx.N.W9.8KG G.W10.8KG |
| Measurement (LxWxH) | 340×60×120mm | 700x100x160mm | 700x100x200mm | 520x160x170mm |
| Package | paper box | paper box | paper box | paper box |
|
|

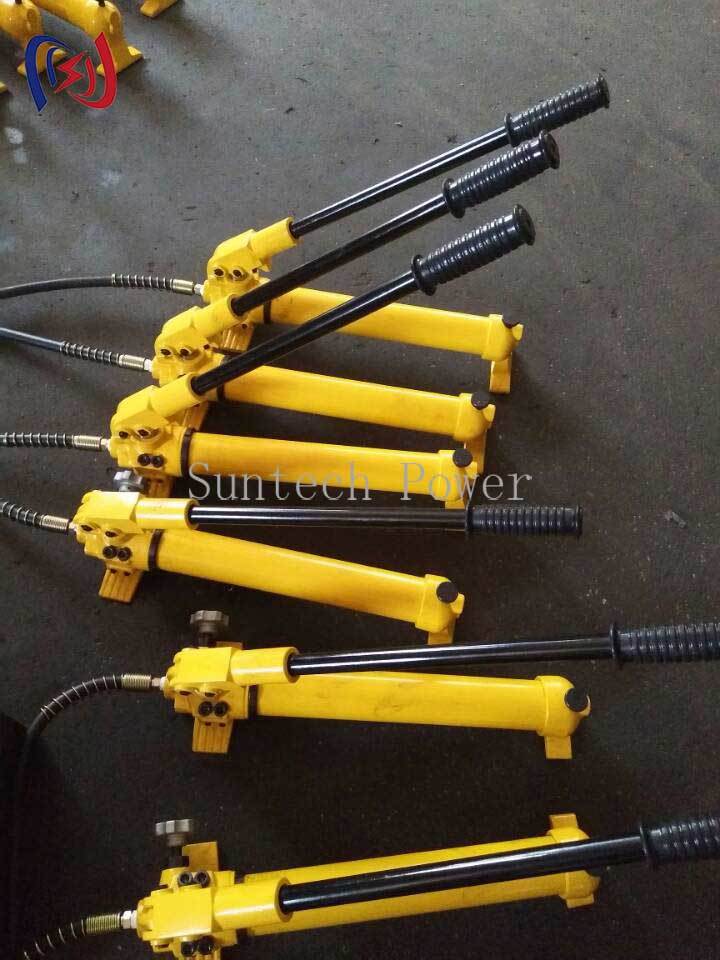

Industrial-Grade Manual Hydraulic Pump for Power Construction Tools Images
|
