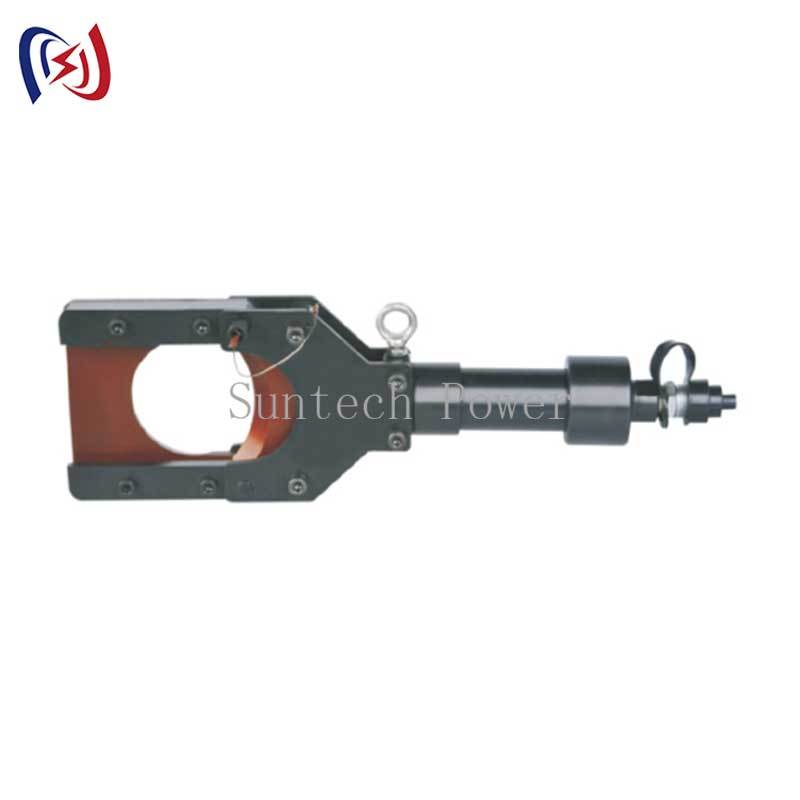

Industrial Split-System Hydraulic Cable Shear for High-Voltage Applications

  • 1
  • 2

Brand Name : Suntech

Model Number : CPC-85H

Certification : ISO

Place of Origin : Ningbo

MOQ : 1 PCS

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 3000 PCS/Month

Delivery Time : 7-15days

Packaging Details : Plywood Case

Name : Split-type Hydraulic Cable Cutter

Item No. : 21449D-21449A

Model : CPC-85H-CPC-160A

Crimping force : 80KN

Stroke : 85-160mm

Length : 480-750mm

Weight : 9.2-18.5KG

Warranty : 1 year

Contact Now


Industrial Split-System Hydraulic Cable Shear for High-Voltage Applications


Key Features:

Exceptional Cutting Force: Delivers up to 8 tons for severing thick armored cables

Precision Blades: Tungsten carbide cutting edges for clean cuts through steel-reinforced cables

360° Swivel Head: Allows cutting from any angle without repositioning the pump

Technical Specifications:
Cutting Capacity: 50mm to 300mm diameter cables (model dependent)

Operating Temperature: -20°C to 60°C (-4°F to 140°F)


Working Principle:
The system utilizes a detachable hand pump connected via high-pressure hose to the cutting head. When activated, hydraulic pressure forces the ultra-hardened blades through cable sheathing and conductors with minimal operator effort. The quick-connect couplings allow fast tool changes in the field.


Primary Applications:
High-voltage transmission line installation and repair

Substation maintenance and cable replacement

Underground power cable termination

Industrial plant shutdown operations

Offshore wind farm cable systems

Railway electrification projects

Mining operations requiring explosive-proof tools


Competitive Advantages:
✓ Superior accessibility - pump can be positioned separately from cutting head
✓ Reduced operator fatigue - minimal physical effort required
✓ Versatile configuration - compatible with multiple blade sets
✓ Enhanced safety - remote operation keeps workers clear of dangerous areas
✓ Low maintenance - sealed hydraulic system with stainless steel components


Service Package:
1-year comprehensive warranty covering all components

Emergency replacement program for critical projectsCustom blade sharpening service

24/7 technical support hotline


Manual Cable Wire Cutter Application

The blades are manufactured from high strength special steel, heat treated to ensure a long service life.

The head can be easily opened to allow the cutting of running cables.

Hydraulic cutting head complete with quick automatic coupler for connection to a hydraulic pump with a working pressure of 700 bar max.


Manual Cable Wire Cutter Specification

Item number 21449D 21449C 21449 21449A
Model CPC-85H CPC-100B CPC-130A CPC-160A

Crimping

force(KN)

80KN 80KN 80KN 80KN
range

armored CU/AL

cable Φ85mm max

armored CU/AL

cable Φ100mm max

armored CU/AL

cable Φ130mm max

armored CU/AL

cable Φ160mm max

Stroke 85mm 100mm 130mm 160mm
Length approx.480mm approx.620mm approx.650mm approx.750mm
Weight(KG)

approx.N.W6.7KG

G.W9.2KG

approx.N.W12KG

G.W15KG

approx.N.W13.35KG

G.W16.5KG

approx.N.W15.35KG

G.W18.5KG

Package wooden case wooden case wooden case wooden case
