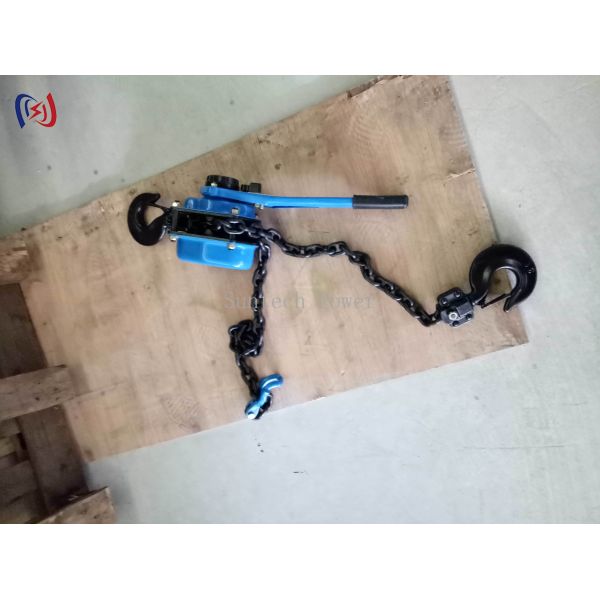

Chain Type Handle Hoist — 5-90kN Manual Chain Pulley Block for Transmission Line Stringing
Supplied by Suntech Power Tools, a Ningbo-based manufacturer with more than 20 years of experience in power transmission line stringing and utility tooling, this chain type handle hoist (manual chain pulley block) is a lightweight, high-safety lifting device designed for simple manual operation in heavy industry and line construction.
Product Overview
Designed for lifting machine parts and for tightening steel stranded wire and aluminum stranded wire during construction, the hoist offers strong, safe performance and easy operation. A 360° rotating hand chain guide allows operation from all angles, so the operator can stay clear of the danger zone. Standard and longer chain lengths are available to match lifting height requirements.
Technical Specifications
| Item No. |
Rated Load (kN) |
Minimum Distance Between Hooks (mm) |
Standard Lifting Height (m) |
Chain Lines (row) |
Weight (kg) |
Weight of 1m Chain (kg) |
| 14201 |
5 |
260 |
1.5 |
1 |
4.2 |
0.52 |
| 14211 |
7.5 |
320 |
1.5 |
1 |
7.5 |
0.8 |
| 14215 |
10 |
380 |
1.5 |
1 |
11.5 |
1.4 |
| 14221 |
15 |
380 |
1.5 |
1 |
11.5 |
1.4 |
| 14231 |
30 |
480 |
1.5 |
1 |
21 |
2.2 |
| 14241 |
60 |
620 |
1.5 |
2 |
31.5 |
4.4 |
| 14245 |
90 |
700 |
1.5 |
3 |
47 |
6.6 |
Chain length options: standard 1.5m; 3m (e.g. 14202, 14212, 14216, 14222, 14232, 14242, 14246) and 5m (e.g. 14204, 14214, 14218, 14224, 14234, 14244, 14248) available.
Key Features & Benefits
- Light weight and simple operation: Manual hand chain design is suited to straightforward lifting and tightening tasks.
- Strong safety performance: Built for high reliability and safe use in heavy industry and construction.
- 360° rotating hand chain guide: Allows operation from all angles, keeping the operator away from the danger zone.
- Versatile lifting and tensioning: Suited to lifting machine parts and tightening steel and aluminum stranded wire.
- Optional chain lengths: Standard 1.5m with 3m and 5m options for different working heights.
Applications
- Lifting machine parts during construction and maintenance
- Tightening steel stranded wire and aluminum stranded wire
- Transmission line stringing and substation rigging
- General manual lifting in heavy industry
Quality, Expertise and Trust
Every hoist is produced under an ISO 9001:2008 certified quality management system and inspected before shipment for rated load, chain quality and hook dimensions. With two decades of experience supplying stringing blocks, cable rollers and utility hardware to customers in more than 50 countries, Suntech supports each order with technical consultation, OEM production and a 1-year warranty.
Why Choose Suntech
- Long-standing expertise in stringing and lifting equipment
- 360° rotating hand chain guide for safe all-angle operation
- Full 5-90kN range with 1/2/3 row chain configurations
- Reliable export logistics and consistent lead times
Request a quotation: Tell us your required rated load, lifting height and chain length, and our team will recommend the right model for your lifting or wire-tightening task. Contact us today.
